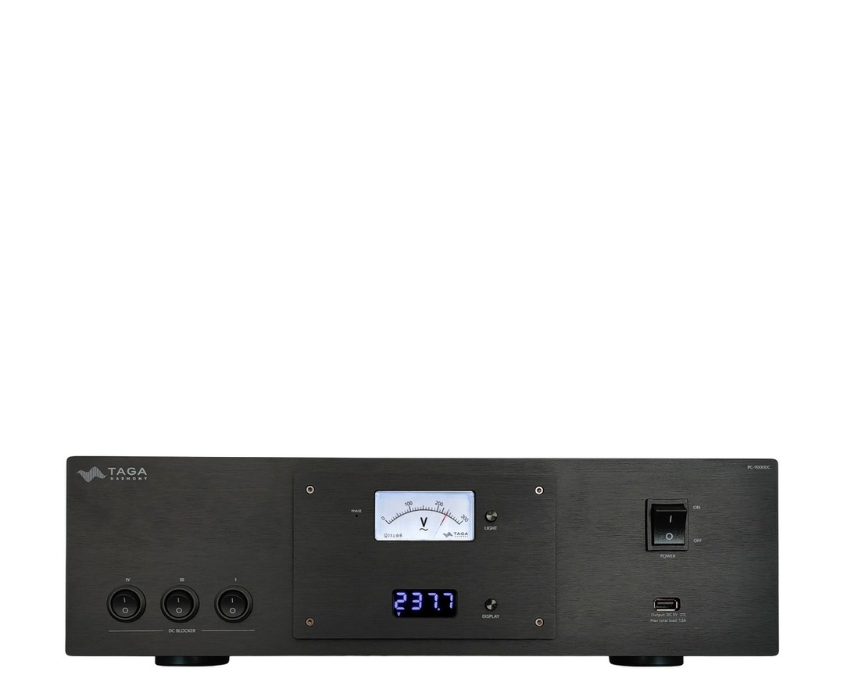

Taga Harmony PC-9000DC
Taga Harmony PC-9000DC - PC-DC sprieguma stabilizators apvieno 4 funkcijas vienā ierīcē: traucējumu filtrēšana elektrotīklā, līdzstrāvas piekļuves bloķēšana, lineārā barošana USB portiem, kā arī aizsardzība pret sprieguma pārspriegumiem un pārslodzēm (visām barošanas izejām un USB pieslēgvietām).
Design Power line conditioner with DC blocker
Sockets Schuko type (230V – 240V):
4 switched
4 unswitched
4 groups (2 sockets each):
Switched:
I (3A max) digital accessories [DC Blocker]
II (1A max) sound sources
Unswitched:
III (5A max) preamplifiers & accessories [DC Blocker]
IV (5A max) amplifiers [DC Blocker]
USB-A ports (linear power supply) : x 2 (5V)
Total maximum power load 14A, 3450W (total for all power sockets and USB ports)
For each group:
Group I (3A max)
Group II (1A max)
Group III (5A max)
Group IV (5A max)
USB ports 2.1A (total)
Noise filter-10dB ~ 55dB (2 - 100MHz)
Max surge current 4500A [8/20µs – one time]
Max spike volt 3000V [10ma]
Max clamping volt 775V [8/20µs]
Max energy 140J [10/1000µs]
Incoming DC blocking Up to 12000mV (12V)
Features / accessories Surge protection
Overload protection
Phase detector with the polarity switch
Analog Voltage indicator (accuracy ±5%) with backlight
Digital Voltage/Ampere/Watt indicator (accuracy ±3%)
USB charging
Schuko-IEC C13 power cord (1.5 m)
AC power / power consumption 230V 50/60Hz
2.0W (Switched OFF - without any external devices plugged in)
3.5W (Switched ON - without any external devices plugged in)
+ 0.2W (with the Backlight engaged)
Dimensions (H x W x D) 13.3 x 43 x 34 cm (incl. feet)
Weight 9.2 kg / pc.
