SUMIKO OLYMPIA

OLYMPIA

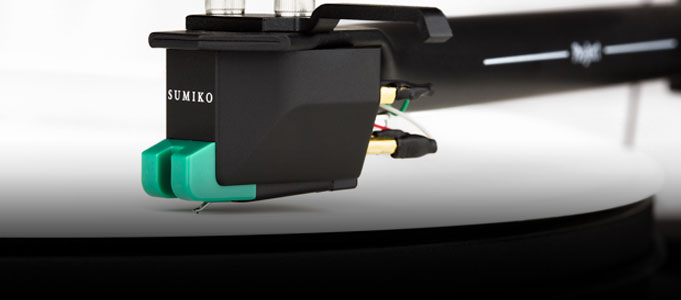

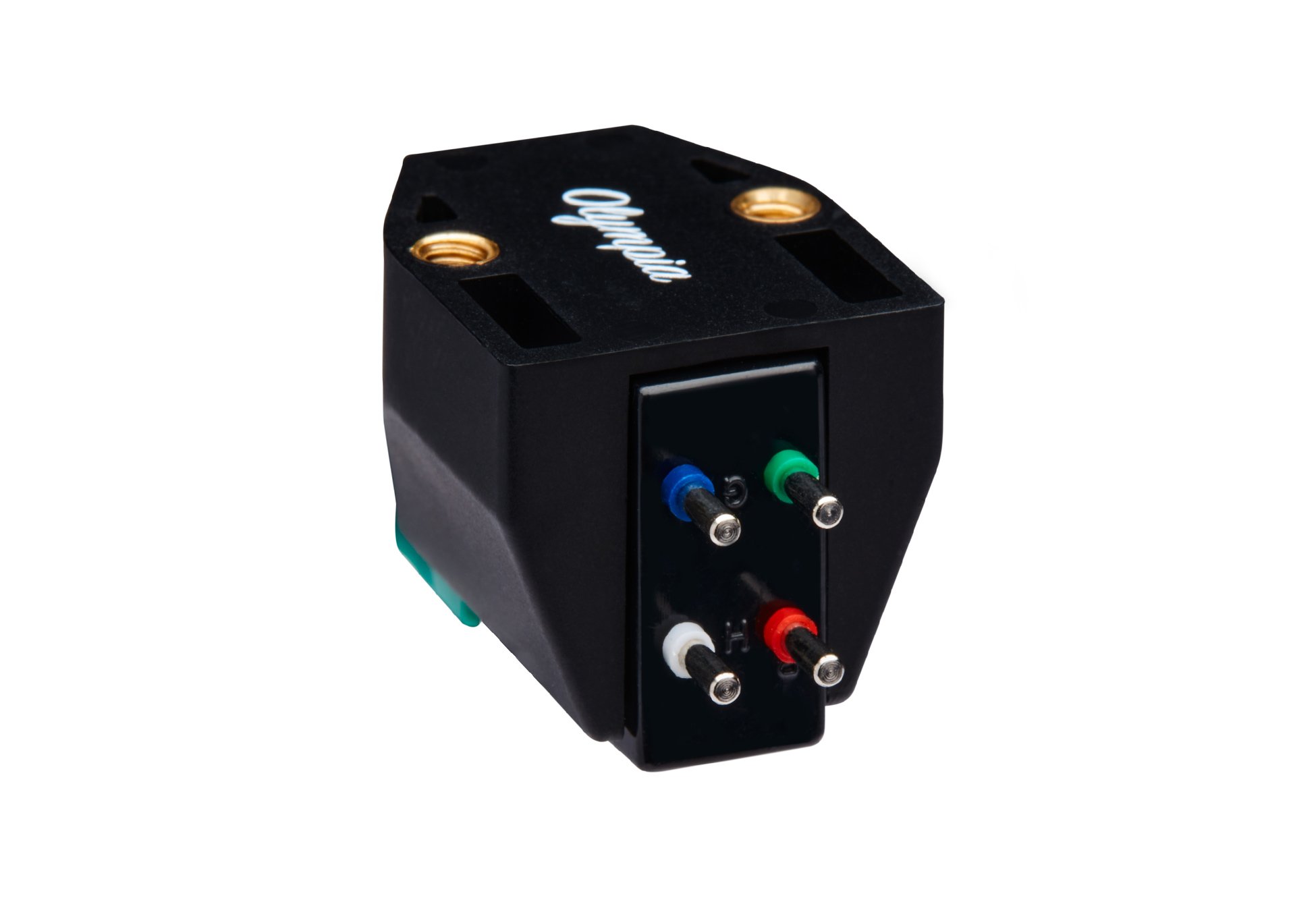

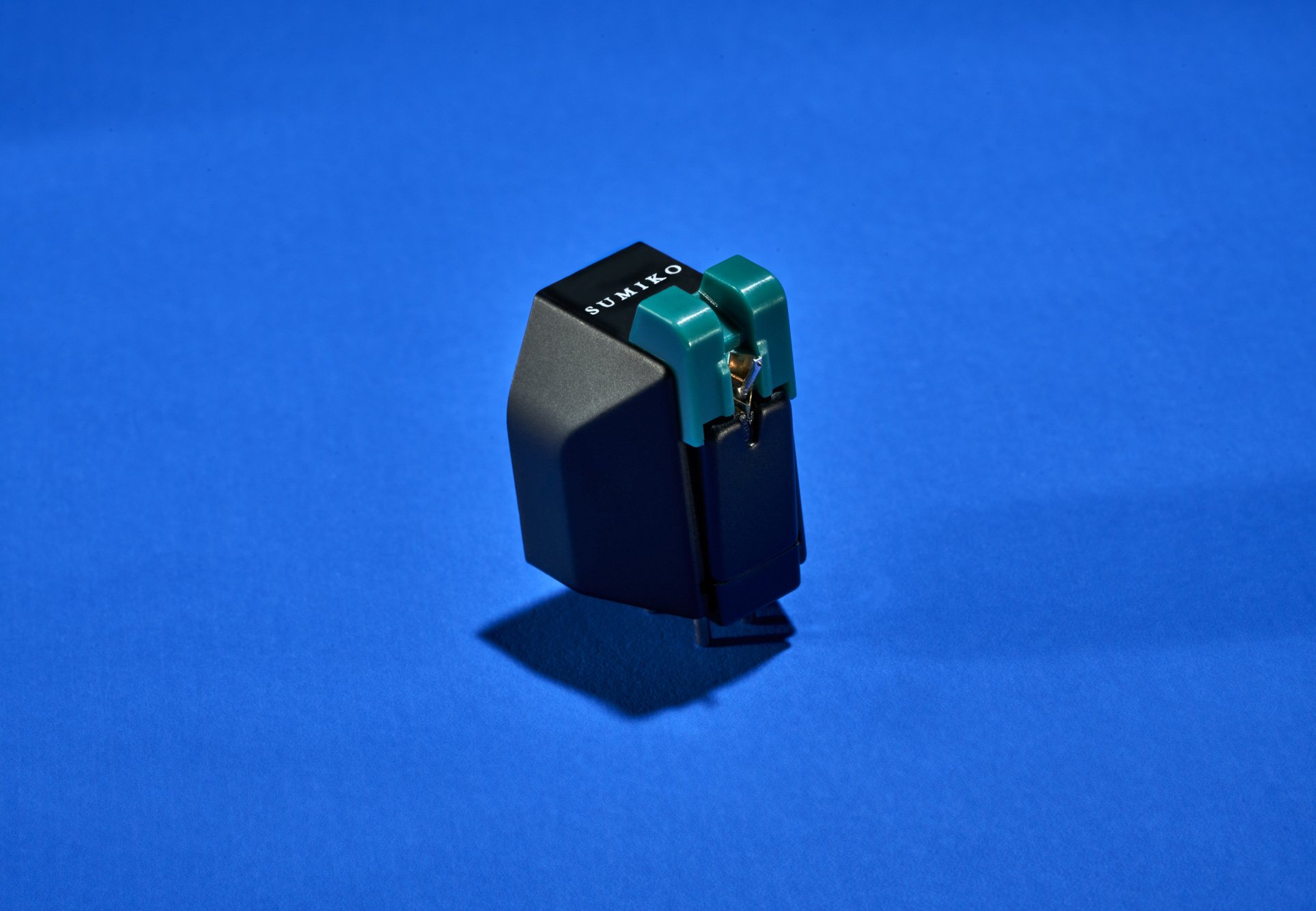

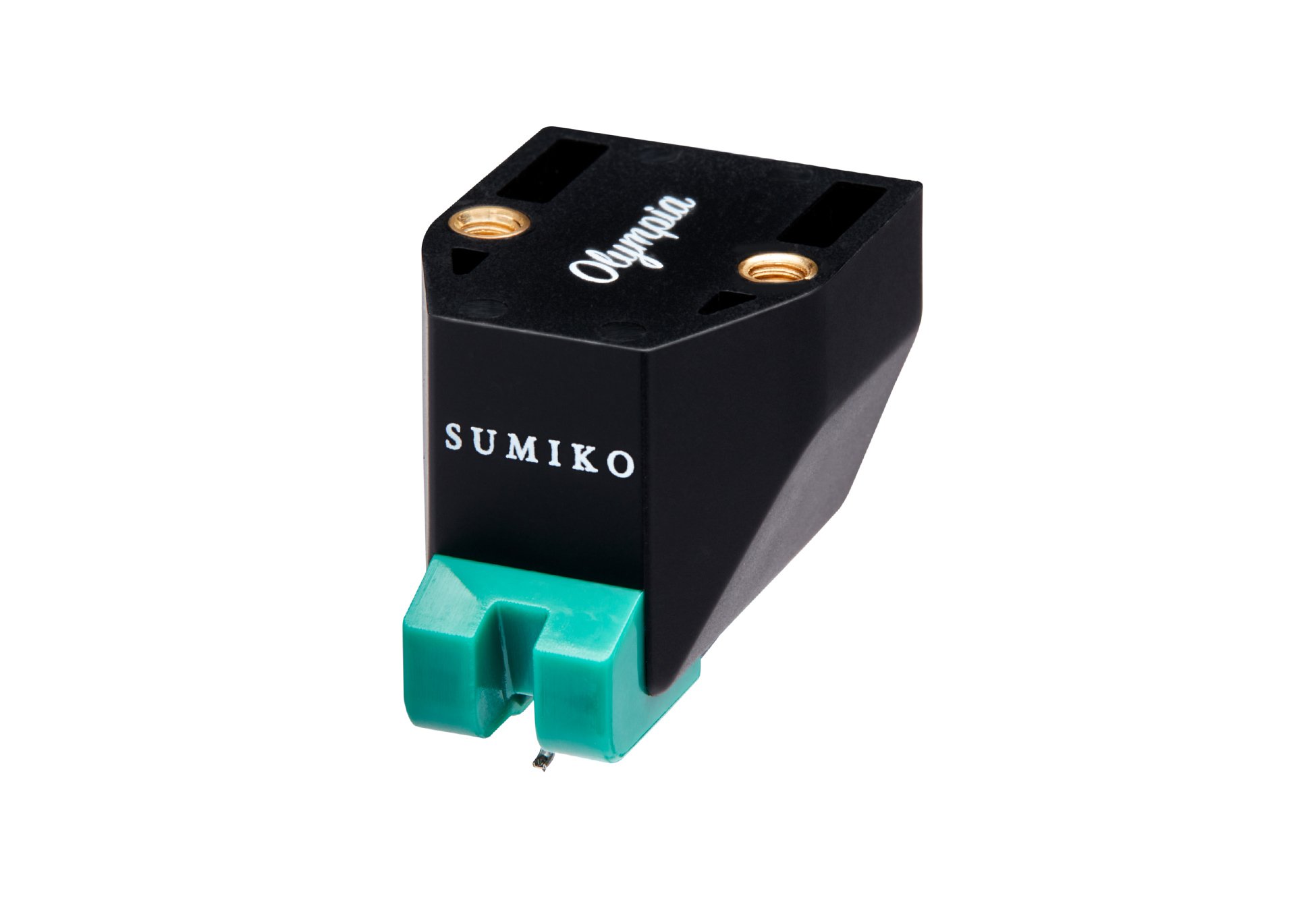

SUMIKO Olympia MM tipa plašu atskaņotāja galviņa

Tehniskie dati

Mass & Dimention 6.5g / 17.2 x 18.8 x 29mm (WxHxD)
Stylus 0.3 x 07mil Elliptical
Cantilever Aluminium Pipe
Coils High-Purity Copper
Internal Impendence 1135 Ohm
Load Impendence 47 kOhm
Frequency Responce 12Hz - 30kHz
Output 4mV
Channel Separation 30dB @ 1kHz
Channel Balance <1.5dB @ 1kHz
Complience 12x10-6cm/dyn @ 100Hz
Capacotance 100pF - 200pF
Vertical Tracking Angle 25°
Tracking Force Range 1.8g - 2.2g
Recommended Tracking Force 2.0g
Replacement Sytlus Unit Rainer, Olympia or Moonstone RS
