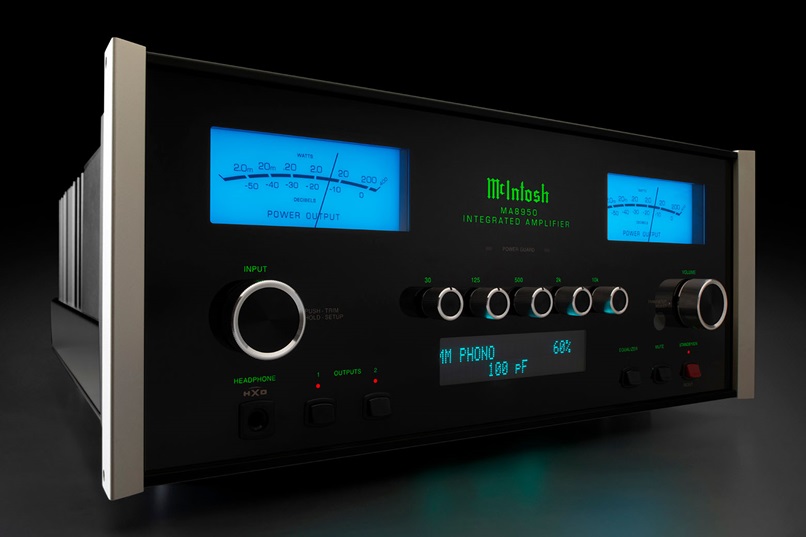

McIntosh MA8950
MA8950 integrētais pastiprinātājs nodrošina 200 vatus katrā kanālā un apvieno McIntosh pieredzi pastiprināšanas un priekšpastiprināšanas tehnoloģijās vienā visaptverošā stereo sistēmas komponentā. Tas aizstāj godalgoto MA8900 (Secrets of Home Theater and High Fidelity 2017 Best Stereo Integrated Amplifier) un pievieno papildu veiktspējas uzlabojumus jau tā izcilajam integrētajam stereo pastiprinātājam.
CONNECTIVITY
Balanced Input 1
Unbalanced Input 6
Phono Input Moving Coil 1 (adjustable loading)
Phono Input Moving Magnet 1 (fixed loading)

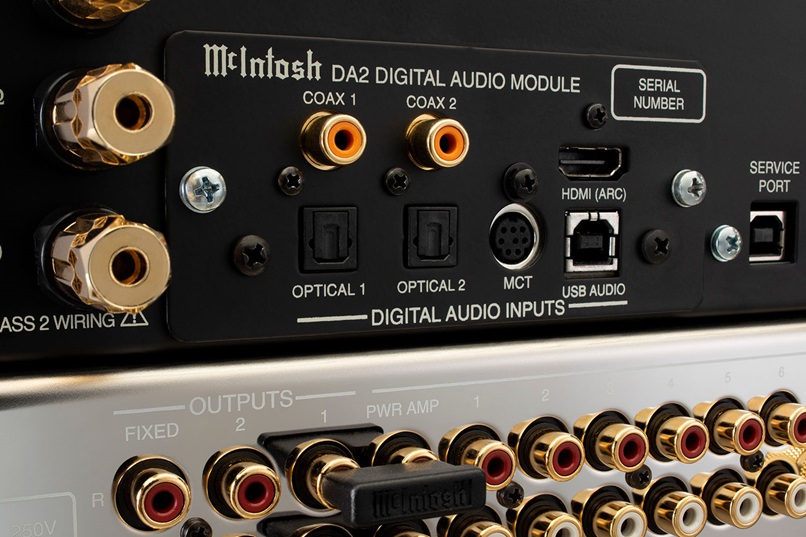

Upgradeable Digital Audio Module - Yes: DA2
Digital Coaxial Input 2
Digital Optical Input 2
Digital MCT Input 1
Digital USB Input 1
HDMI (ARC) Input 1
Balanced Variable Output 0
Unbalanced Fixed Output 1
Unbalanced Variable Output 2
Headphone Output 1/4" High Drive with Headphone Crossfeed Director (HXD®)
Subwoofer Output 0
AM/FM Tuner option - No
Home Theater PassThru - Yes
Unbalanced Analog Connector Type - Standard
Speaker Binding Post Type - Standard
Service Port 1
DIGITAL AUDIO SPECIFICATIONS
Digital-to-Analog Converter (DAC) Type 8-channel, 32-bit/384kHz PCM/DSD, Quad Balanced
Digital Coaxial Input Sample Rate 24-bit/44.1kHz to192kHz
Digital Optical Input Sample Rate 24-bit/44.1kHz to192kHz
Digital MCT Input Sample Rate 16-bit/44.1kHz (CD)
DSD64 (SACD)
Digital USB Input Sample Rate 32-bit/44.1kHz to 384kHz (PCM)
DSD64, DSD128, DSD256, DSD512, DXD352.8kHz, DXD384kHz
CONTROL
Tone Controls 5-Band
Tone Bypass and Input Assign - Yes
RS232 Control Input - Yes
Power Control Output 1 Main, 2 Trigger
Rear Panel Data Port 4
Rear Panel IR Sensor Input - Yes
Input Level Match - Yes
GENERAL SPECIFICATIONS
Vacuum Tube or Solid State - Solid State
Output Type - Autoformer™
Output Meters - Yes
Dual Layer Chassis - Yes
Chassis Finish -Polished stainless steel & black painted steel
McIntosh Monogrammed Heatsinks™ - Yes
Power Requirement
120V 50/60Hz, 4.4 amps
Standby Power Requirement <0.25 Watts
WEIGHTS & DIMENSIONS
Unit Dimensions (W x H x D)
17-1/2" (44.5cm) x 7-5/8" (19.4cm) x 18-3/4" (47.6cm)
Unit Weight
75 lbs (34.1 kg)
Shipping Weight
93 lbs (42.3 kg)
