McIntosh MA7200

FTC Power Output Rating  200 W

Power Output per Channel  200 W into 2, 4, or 8 ohms

Number of Channels  2

Rated Power Band  20Hz to 20kHz

Total Harmonic Distortion  0.005%

Dynamic Headroom  2dB

Frequency Response +0,-0.5dB  20Hz to 20kHz

Frequency Response, +0, -3dB  10Hz to 100kHz

Sensitivity Phono (Moving Coil)  0.25mV

Sensitivity Phono (Moving Magnet)  2.5mV

Sensitivity High Level (Balanced / Unbalanced)  0.5V/0.25V

Sensitivity (Power Amp input)  1.4V

Signal To Noise Ratio (Moving Coil)  80dB

Signal To Noise Ratio (Moving Magnet)  82dB

Signal To Noise Ratio (High Level)  95dB

Signal To Noise Ratio (Power Amp input)  113dB

Input Impedance (Balanced / Unbalanced)  20K/20K

Damping Factor  >40

Maximum Output (Balanced / Unbalanced)  8V Unbalanced

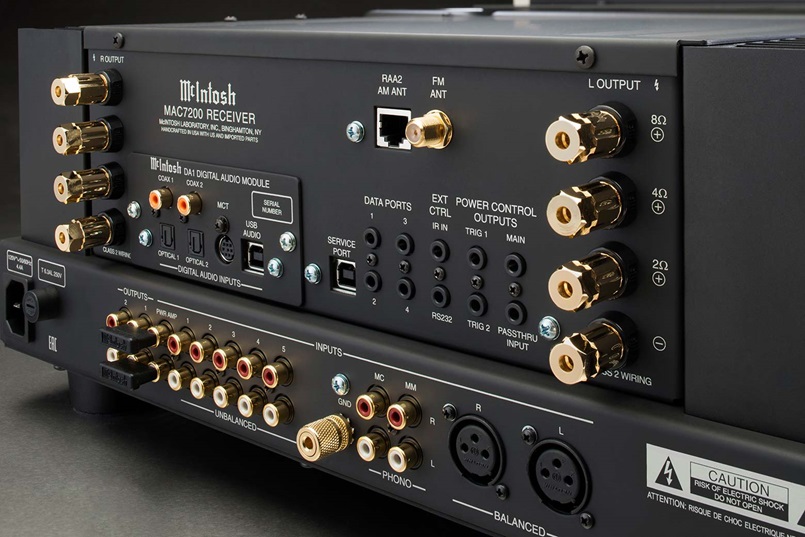

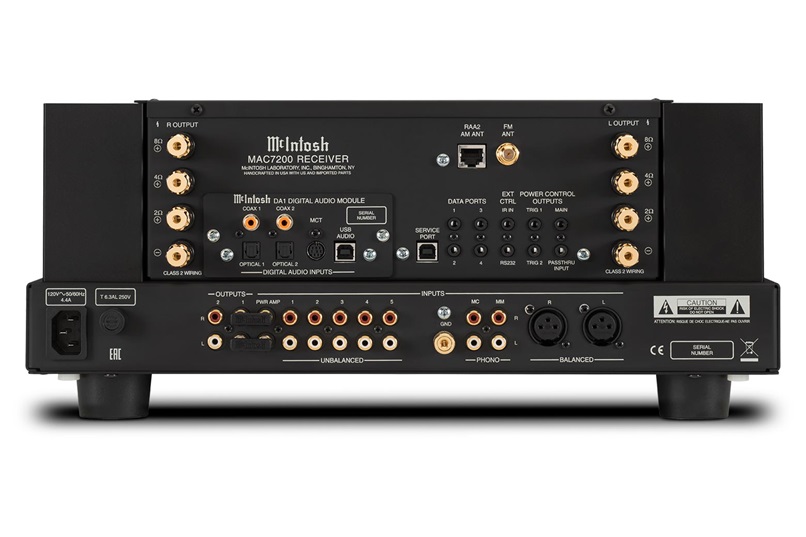

CONNECTIVITY

Balanced Input  1

Unbalanced Input  5

Phono Input Moving Coil  1 (adjustable loading)

Phono Input Moving Magnet 1 (fixed loading)

Upgradeable Digital Audio Module - Yes: DA1

Digital Coaxial Input  2

Digital Optical Input  2

Digital MCT Input  1

Digital USB Input  1

HDMI (ARC) Input 0

Balanced Variable Output  0

Unbalanced Fixed Output 0

Unbalanced Variable Output  2

Headphone Output 1/4" High Drive with Headphone Crossfeed Director (HXD®)

Subwoofer Output  0

AM/FM Tuner option - No

Home Theater PassThru - Yes

Unbalanced Analog Connector Type - Standard

Speaker Binding Post Type - Standard

Service Port  1

DIGITAL AUDIO SPECIFICATIONS

Digital-to-Analog Converter (DAC) Type  8-channel, 32-bit/384kHz PCM/DSD, Quad Balanced

Digital Coaxial Input Sample Rate  24-bit/44.1kHz to 192kHz

Digital Optical Input Sample Rate  24-bit/44.1kHz to 192kHz

Digital MCT Input Sample Rate  16-bit/44.1kHz (CD)

DSD64 (SACD)

Digital USB Input Sample Rate

32-bit/44.1kHz to 384kHz (PCM)

DSD64, DSD128, DSD256, DXD352.8kHz, DXD384kHz

CONTROL

Tone Controls - Bass and Treble

Tone Bypass and Input Assign - Yes

RS232 Control Input - Yes

Power Control Output - 1 Main, 2 Trigger

Rear Panel Data Port - 4

Rear Panel IR Sensor Input - Yes

Input Level Match - Yes

GENERAL SPECIFICATIONS

Vacuum Tube or Solid State - Solid State

Output Type - Autoformer™

Output Meters - Yes

Dual Layer Chassis - Yes

Chassis Finish - Black painted steel

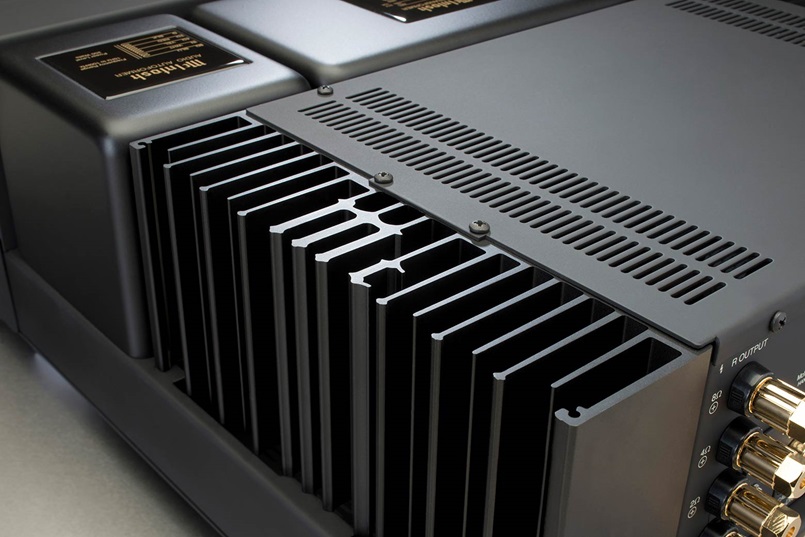

McIntosh Monogrammed Heatsinks™ - Yes

Power Requirement - 120V 50/60Hz, 4.4 amps

Standby Power Requirement - <0.25 Watts

WEIGHTS & DIMENSIONS

Unit Dimensions (W x H x D)

17-1/2" (44.5cm) x 7-5/8" (19.4cm) x 18-3/4" (47.6cm)

Unit Weight

75 lbs (34.1 kg)

Shipping Weight

93 lbs (42.3 kg)
