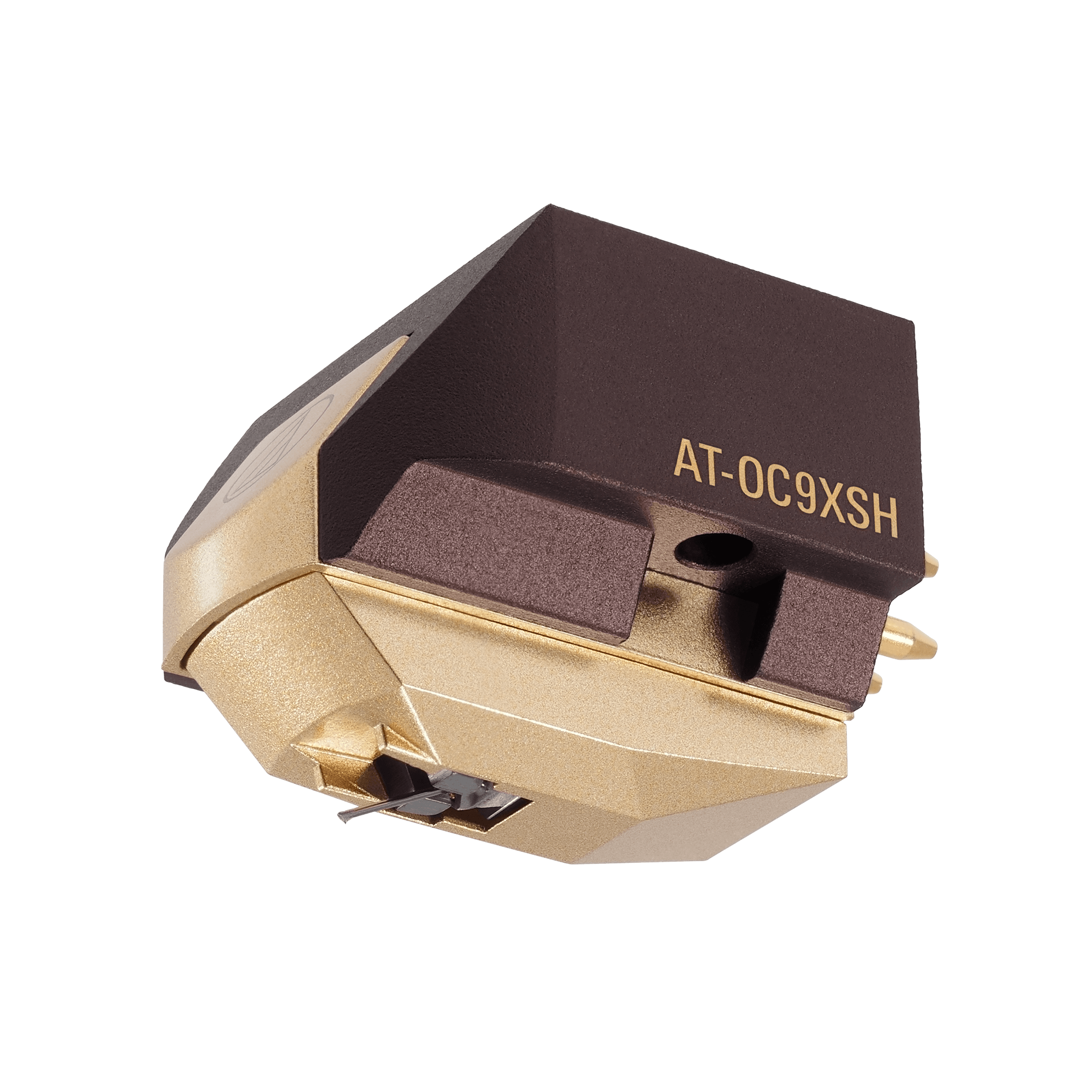

AUDIO-TECHNICA AT-OC9XSH

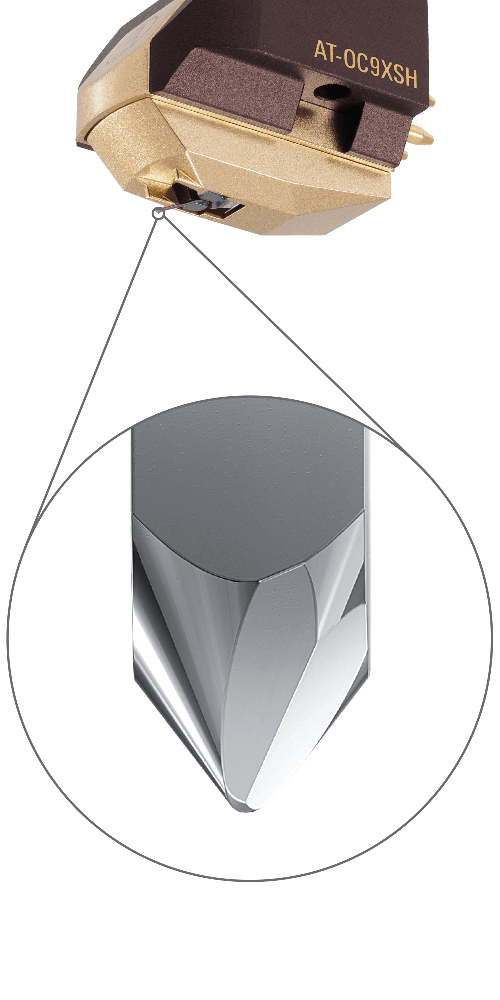

AT-OC9XSH Dual Moving Coil kasetne ar Shibata adatu. Pure Copper by Ohno Continuous Casting (PCOCC) spoles nodrošina tīru audio pārraidi un ir sakārtotas apgrieztā V formā, lai mazāk noslogotu adatu. Tādējādi tiek samazināts audio kropļojumus. Skaņas kvalitāti vēl vairāk uzlabo stingrs alumīnija korpuss, kas samazina rezonansi, neodīma magnēts un augstākās kvalitātes permendura stiprinājmi, kas palielina magnētisko enerģiju, un Naked Shibata adata uz bora konsoles, kas seko ieraksta gropei ar neticamu precizitāti, nodrošinot bagātīgu, pilnīgu frekvenču diapazonu.
Frequency Response: 20 - 47,000 Hz
Channel Separation: 27 dB (1 kHz)
Vertical Tracking Angle: 20 degrees
Vertical Tracking Force: 1.8 to 2.2 g (standard 2.0 g)
Stylus Construction: Nude square shank
Recommended Load Impedance: Min 100 Ohms
Coil Impedance: 12 Ohms (1 kHz)
DC Resistance: 12 Ohms
Coil Inductance: 25 μH (1 kHz)
Output Voltage: 0.4 mV (@ 1 kHz, 5 cm/sec)
Output Channel Balance: 1.0 dB (1 kHz)
Stylus Shape: Shibata
Cantilever: 0.28 mm Ø nude boron
Static Compliance: 20 x 10 – 6 cm / dyne
Dynamic Compliance: 16 x 10 – 6 cm / dyne (100 Hz)
Mounting: 1/2” centers / Threaded inserts
Cartridge Weight: 7.6 g
Dimensions: 17.3 (H) x 16.8 (W) x 25.7 (L) mm

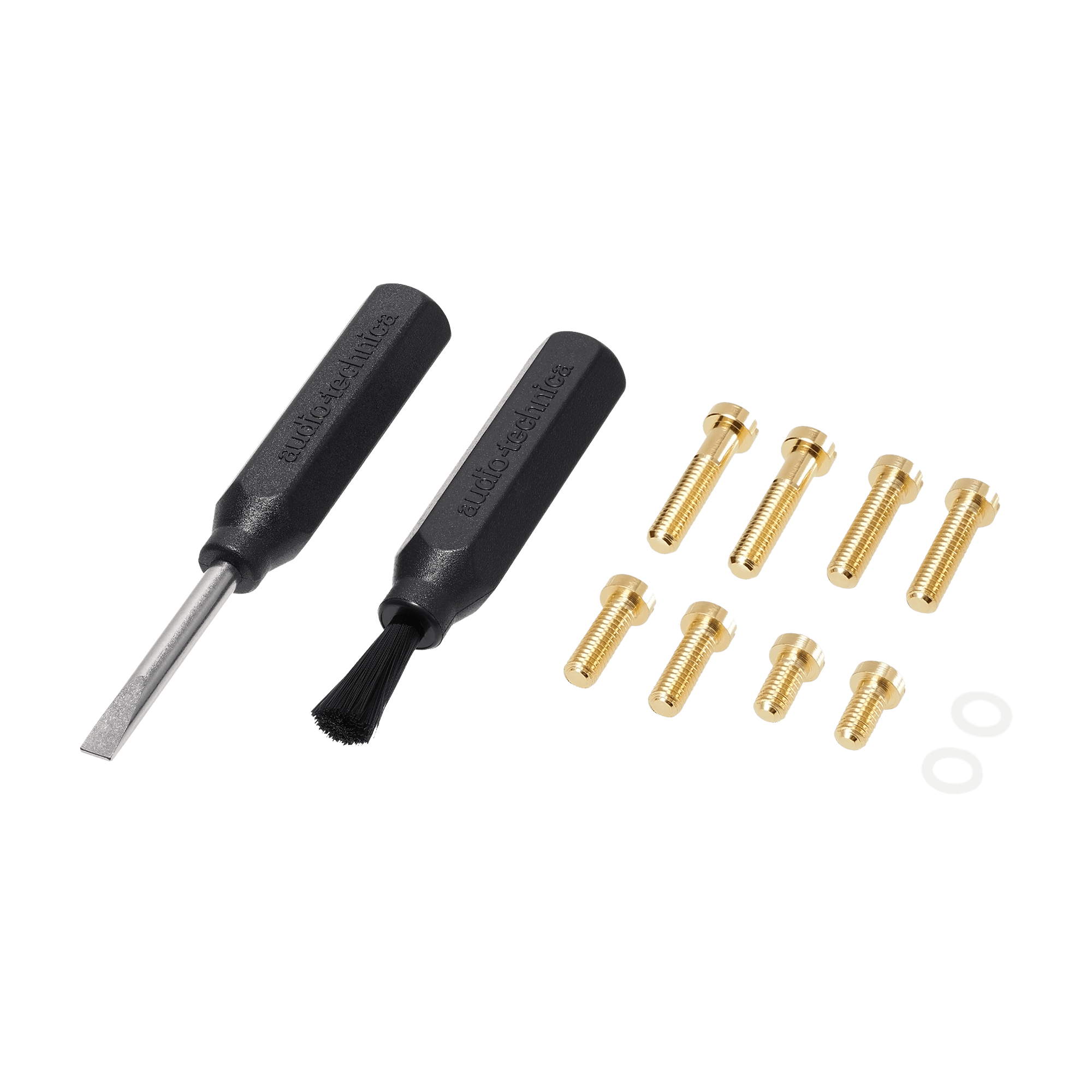

Accessories Included:
1 non magnetic screw driver
1 brush
2 washers
4 pairs of mounting screws: 5mm, 8mm, 10mm, 12mm
1 plastic protector
Body Material: Aluminium
Model: AT-OC9XSH
Stylus Size: 2.7 x 0.26 mil
Terminal Pins: Brass
Wire Used for Coil: PCOCC (Copper by Ohno Continuous Casting process.)
