AUDIO-TECHNICA AT-OC9XML

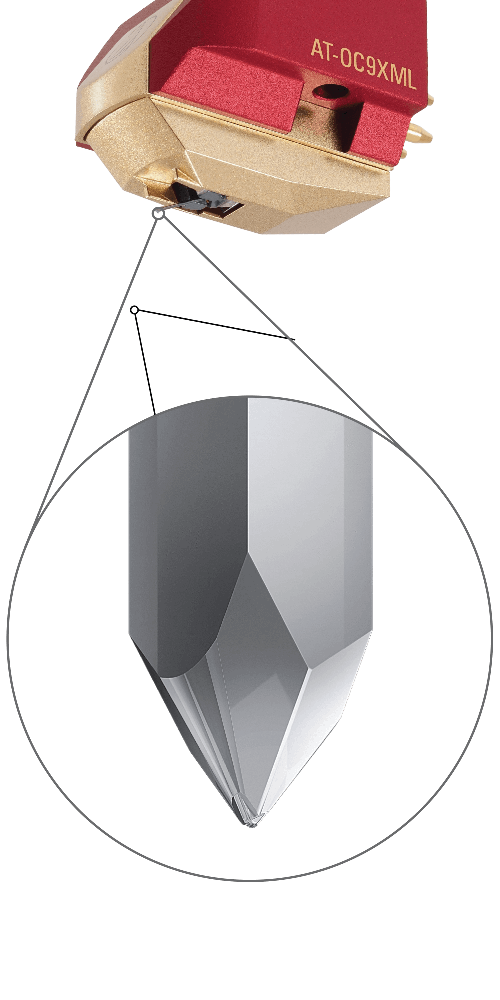

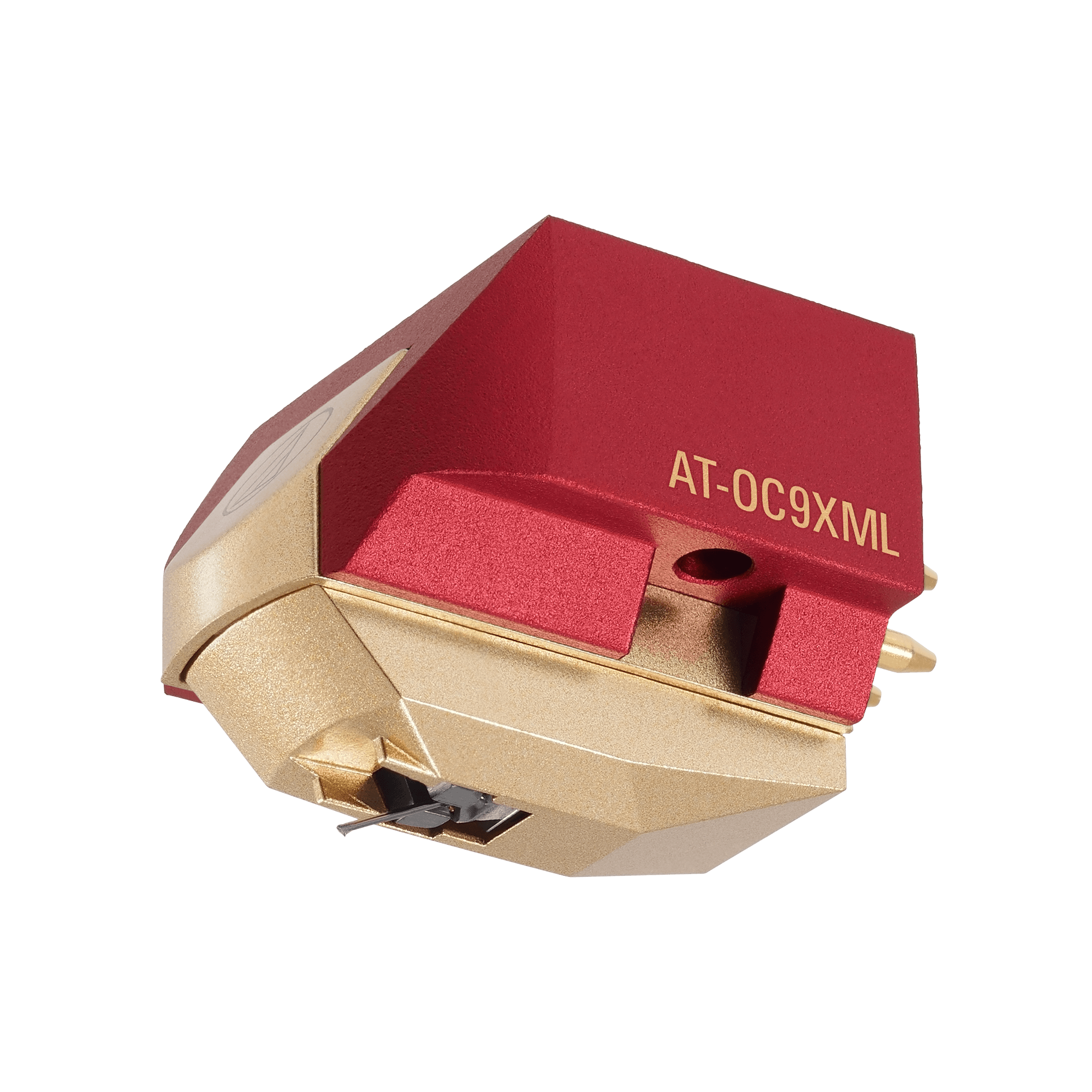

AT-OC9XML Dual Moving Coil kasetne ar mikrolineāru adatu. Pure Copper by Ohno Continuous Casting (PCOCC) spoles nodrošina tīru audio signālu un ir sakārtotas apgrieztā V formā. Tās mazāk noslogo adatu, tādējādi samazinot skaņas kropļojumus un mazāk bojā ierakstu plati. Skaņas kvalitāti vēl vairāk uzlabo stingrs alumīnija korpuss, kas samazina rezonansi, neodīma magnēts un augstākās kvalitātes permendura stiprinājumi, kas palielina magnētisko enerģiju, un Nude Microlinear adata uz bora konsoles, kas seko ieraksta gropei ar neticamu precizitāti un zemo audio signāla korpļojumu.
Frequency Response: 20 - 47,000 Hz
Channel Separation: 27 dB (1 kHz)
Vertical Tracking Angle: 20 degrees
Vertical Tracking Force: 1.8 to 2.2 g (standard 2.0 g)
Stylus Construction: Nude square shank
Recommended Load Impedance: Min 100 Ohms
Coil Impedance: 12 Ohms (1 kHz)
DC Resistance: 12 Ohms
Coil Inductance: 25 μH (1 kHz)
Output Voltage: 0.4 mV (@ 1 kHz, 5 cm/sec)
Output Channel Balance: 1.0 dB (1 kHz)
Stylus Shape: Microlinear
Cantilever: 0.28 mm Ø nude boron
Static Compliance: 20 x 10 – 6 cm / dyne
Dynamic Compliance: 16 x 10 – 6 cm / dyne (100 Hz)
Mounting: 1/2” centers / Threaded
Cartridge Weight: 7.6 g
Dimensions: 17.3 (H) x 16.8 (W) x 25.7 (L) mm

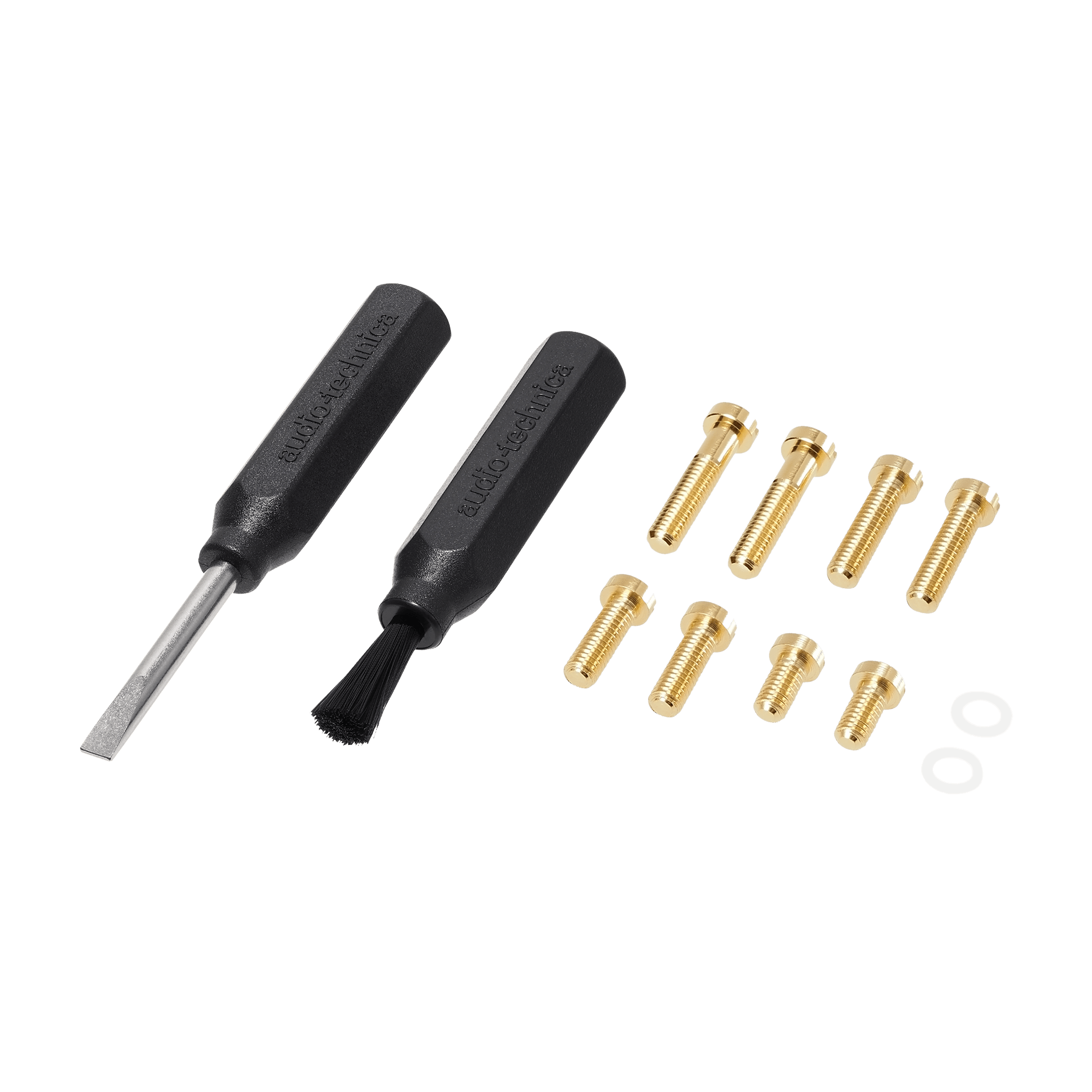

Accessories Included:
1 non magnetic screw driver
1 brush
2 washers
4 pairs of mounting screws: 5mm, 8mm, 10mm, 12mm
1 plastic protector
Body Material: Aluminium
Model: AT-OC9XML
Stylus Size: 2.2 x 0.12 mil
Terminal Pins: Brass
Wire Used for Coil: PCOCC (Copper by Ohno Continuous Casting process.)
