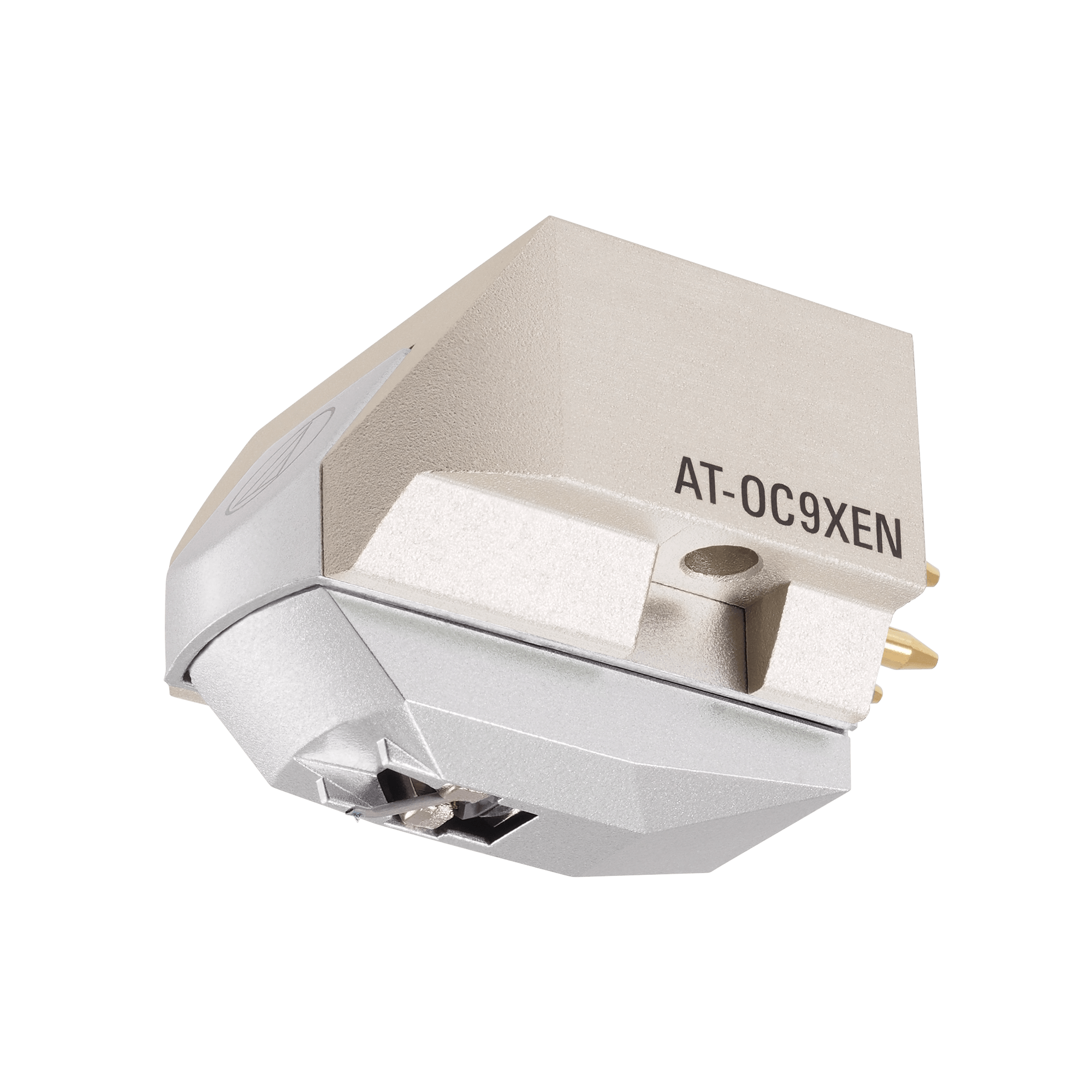

AUDIO-TECHNICA AT-OC9XEN
AT-OC9XEN Dual Moving Coil kasetne ar Nude Elliptical adatu. Pure Copper by Ohno Continuous Casting (PCOCC) spoles nodrošina tīru audio pārraidi. Tās ir izkārtotas apgrieztā V formā, lai mazāk noslogotu adatu, tādējādi samazinot skaņas kvalitātes kropļojumus un mazāk bojātu ierakstu plati. Skaņas kvalitāti vēl vairāk uzlabo stingrs alumīnija korpuss, kas samazina rezonansi, neodīma magnēts un tīra dzelzs stiprinājumi, kas palielina magnētisko enerģiju, un mazmasas Nude Elliptical adata uz alumīnija konsoles, kas precīzi izseko ieraksta gropi.
Frequency Response: 20 - 30,000 Hz
Channel Separation: 25 dB (1 kHz)
Vertical Tracking Angle: 20 degrees
Vertical Tracking Force: 1.8 to 2.2 g (standard 2.0 g)
Stylus Construction: Nude square shank
Recommended Load Impedance: Min 100 Ohms
Coil Impedance: 12 Ohms (1 kHz)
DC Resistance: 12 Ohms
Coil Inductance: 25 μH (1 kHz)
Output Voltage: 0.35 mV (@ 1 kHz, 5 cm/sec)
Output Channel Balance: 1.5 dB (1 kHz)

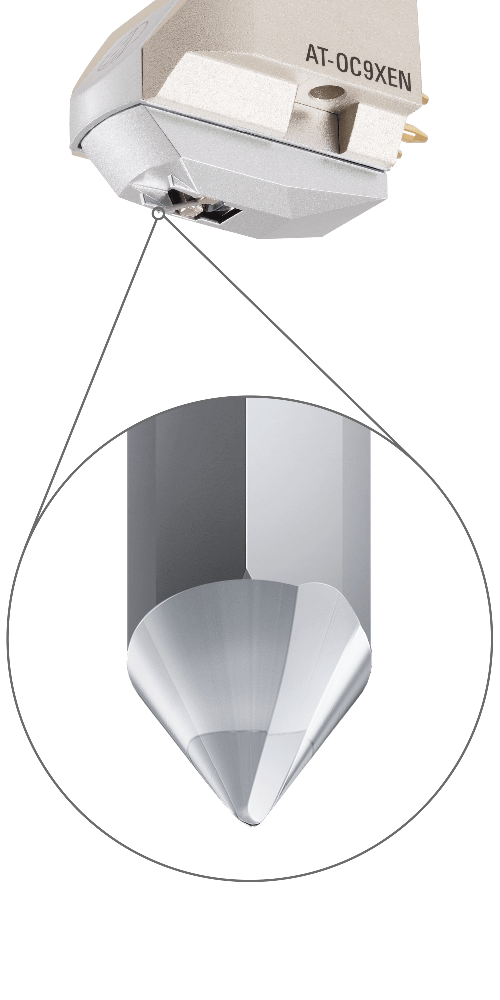

Stylus Shape: Elliptical Nude
Cantilever: Aluminium pipe
Static Compliance: 20 x 10 – 6 cm / dyne
Dynamic Compliance: 9 x 10 – 6 cm / dyne (100 Hz)
Mounting: 1/2” centers / Threaded inserts
Cartridge Weight: 7.6 g
Dimensions: 17.3 (H) x 16.8 (W) x 25.7 (L) mm

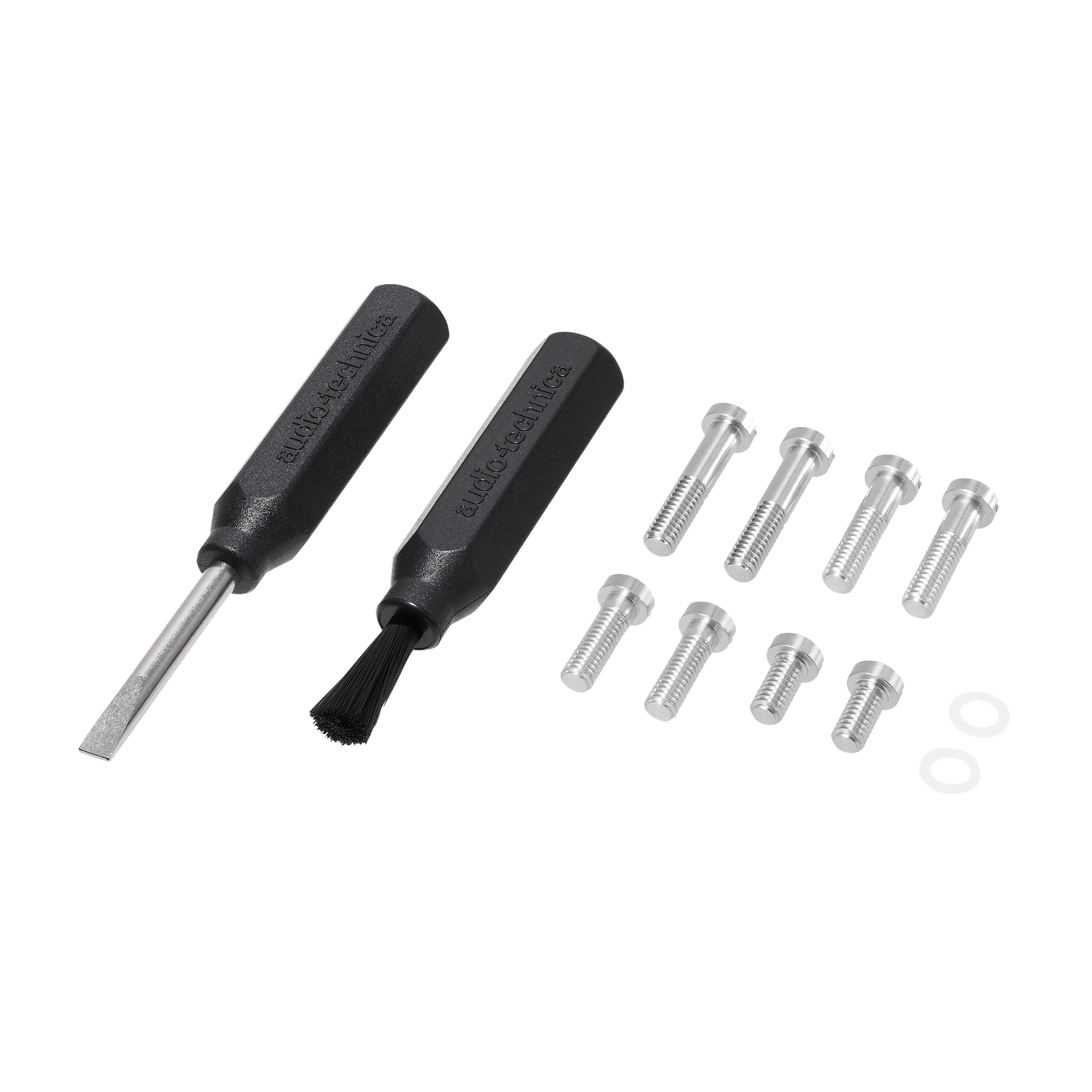

Accessories Included: 1 non magnetic screw driver, 1 brush, 2 washers, 4 pairs of mounting screws: 5mm, 8mm, 10mm, 12mm, 1 plastic protector
Body MaterialAluminium
Model: AT-OC9XEN
Stylus Size: 0.3 x 0.7 mil
Terminal Pins: Brass
Wire Used for CoilPCOCC (Copper by Ohno Continuous Casting process.)
