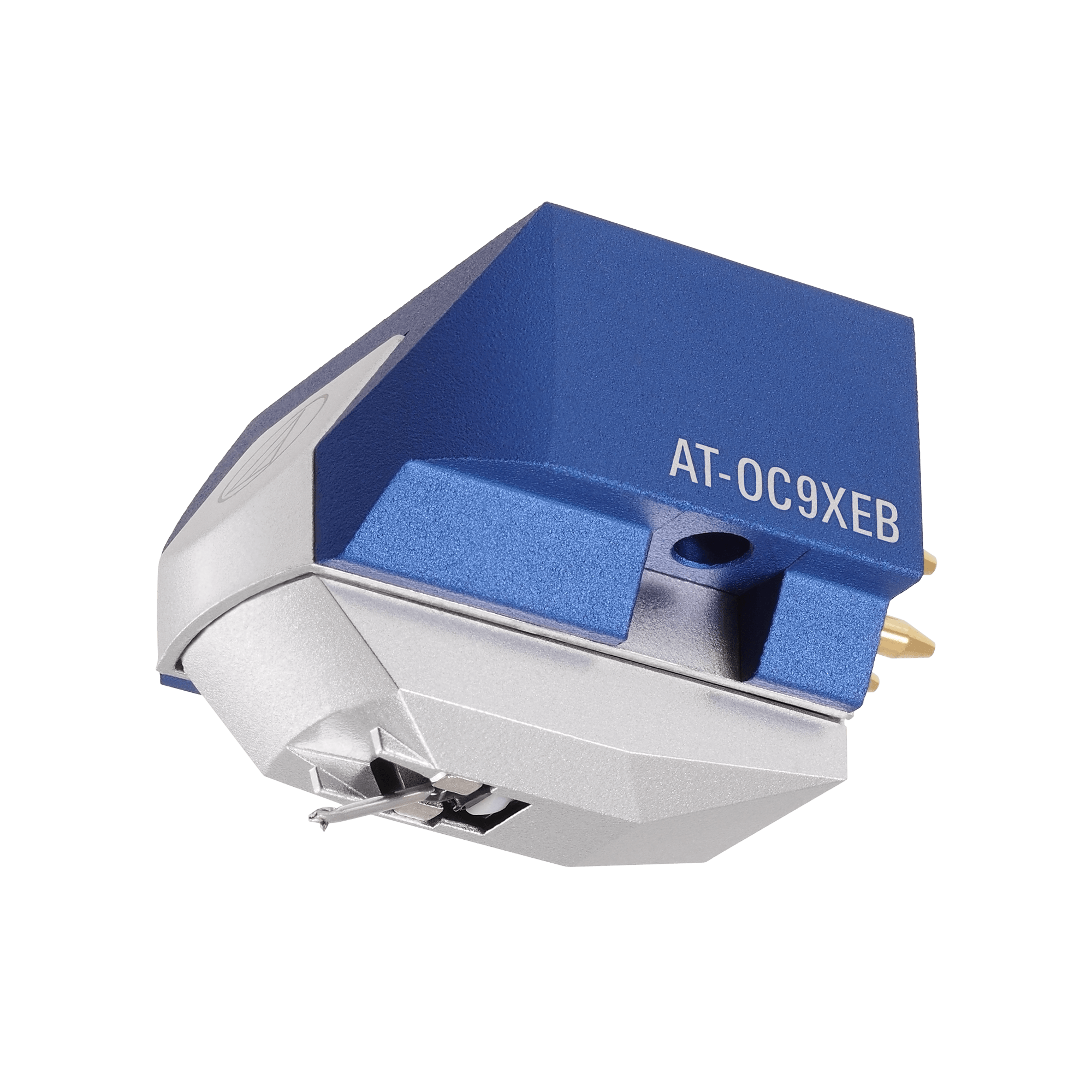

AUDIO-TECHNICA AT-OC9XEB
Audio Technica AT-OC9XEB ir dubulta MC Phono kasetne ar Eleptical Bonded adatu ir radīta, lai sniegtu labu skanējumu. Pure Copper by Ohno Continious Casting (PCOCC) spoles nodrošina tīru audio pārraidi un ir izkārtotas apgrieztā V formā, lai mazāk noslogotu adatu, tādējādi mazinot skaņas un ierakstu plates nolietojumu. Skaņas kvalitāti vēl vairāk uzlabo stings alumīnijas korpuss, kas samazina rezonanci, neodīma magnēts un tīra dzelss savienojmi, kas palielina magnētisko enerģiju, un Eleptical bonded adata ir uz alumīnija konsoles precīzi seko vinila plates gropei.
requency Response: 20 - 30,000 Hz
Channel Separation: 25 dB (1 kHz)
Vertical Tracking Angle: 20 degrees
Vertical Tracking Force: 1.8 to 2.2 g (standard 2.0 g)
Stylus Construction: Bonded round shank
Recommended Load Impedance: Min 100 Ohms
Coil Impedance: 12 Ohms (1 kHz)
DC Resistance: 12 Ohms
Coil Inductance: 25 μH (1 kHz)
Output Voltage: 0.32 mV (@ 1 kHz, 5 cm/sec)
Output Channel Balance: 1.5 dB (1 kHz)

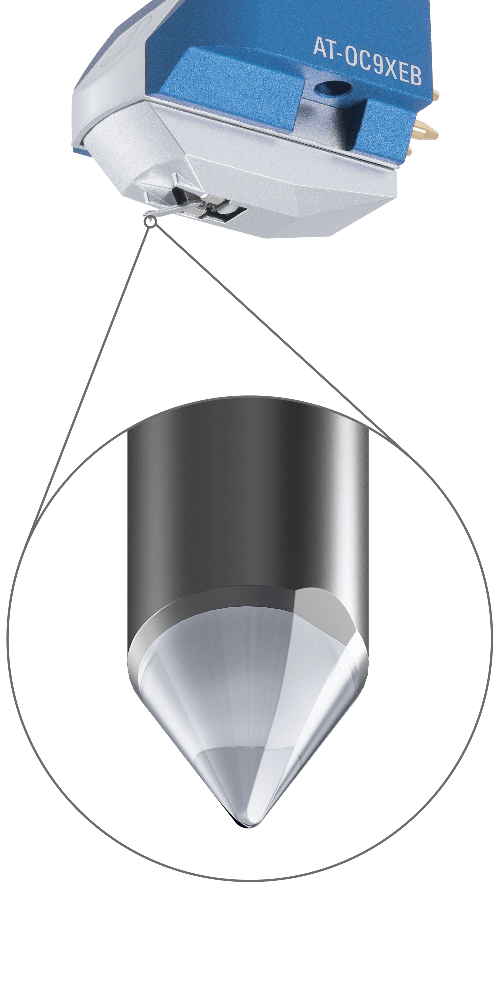

Stylus Shape: Elliptical Bonded
Cantilever: Aluminium pipe
Static Compliance: 20 x 10 – 6 cm / dyne
Dynamic Compliance: 9 x 10 – 6 cm / dyne (100 Hz)
Mounting: 1/2” centers / Threaded inserts
Dimensions: 17.3 (H) x 16.8 (W) x 25.7 (L) mm

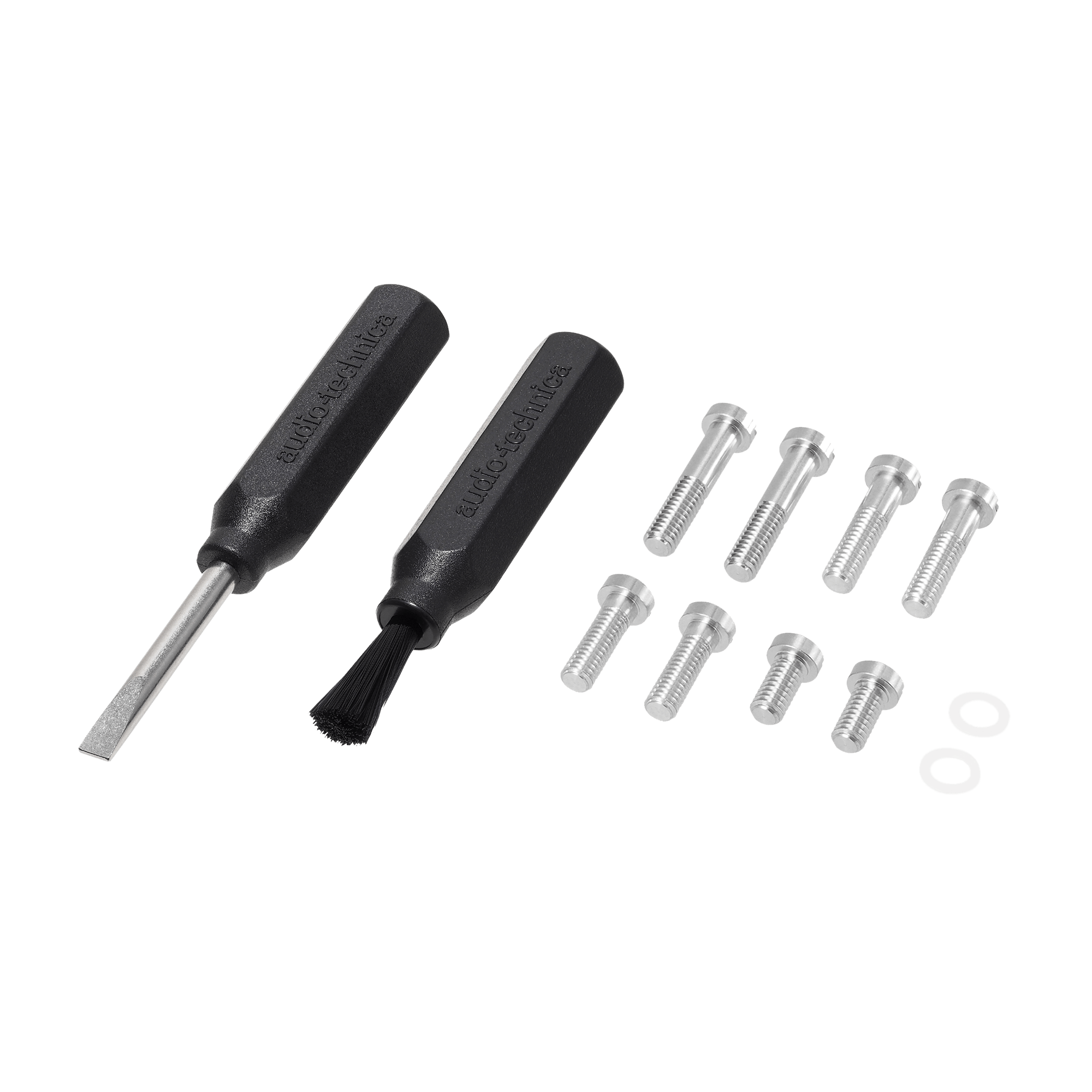

Accessories Included: 1 non magnetic screw driver,
1 brush; 2 washers, 4 pairs of mounting screws: 5mm, 8mm, 10mm, 12mm 1 plastic protector
Body Material: Aluminium
Model: AT-OC9XEB
Stylus Size: 0.3 x 0.7 mil
Terminal Pins: Brass
Weight: 7.6 g
Wire Used for Coil: PCOCC (Copper by Ohno Continuous Casting process.)
