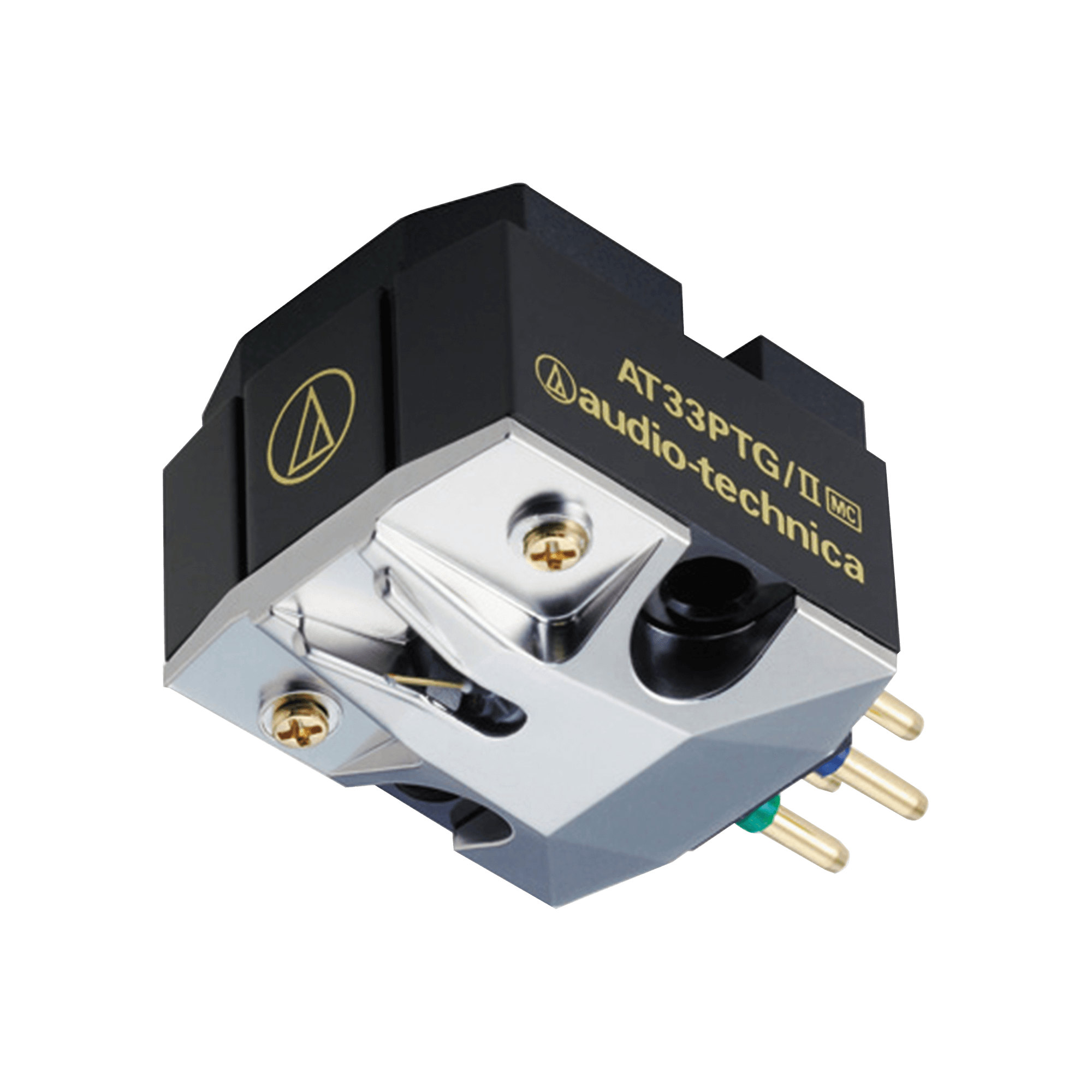

AUDIO-TECHNICA AT33PTGII
AUDIO-TECHNICA AT33PTGII - Nude Square Shank adatas MC adatas kasetne. Augstas veikstpējas un ilgmūžibas Microlinear (ML) adata nodrošina augstāka frekvenču diapozona nodrošinājumu nekā tas ir koniskājām vai elepitiskajām vinila plašu adatām. Šīs adatas mūžs ir aptuveni 1000 darbības stundas.
Frequency Response: 15 - 50,000Hz
Channel Separation: 30dB (1kHz)
Vertical Tracking Angle: 23°
Vertical Tracking Force: 1.8 to 2.2 g (standard 2.0 g)
Stylus Construction: Nude Square Shank
Recommended Load Impedance: Min 100Ω
Coil Impedance: 10Ω (1kHz)
DC Resistance: 10Ω
Coil Inductance: 22µH (1kHz)
Output Voltage: 0.3mV (1kHz and 5cm/sec.)
Output Channel Balance: 1dB (1kHz)
Stylus Shape: Microlinear
Cantilever: Gold-plated solid boron
Static Compliance: 40×10-6cm/dyne
Dynamic Compliance: 10×10-6cm/dyne (100Hz)
Mounting: 1/2" Centers
Dimensions: H16×W16.6×D26.5mm
Accessories Included: 1 non magnetic screw driver; 2 washers; 2 Nuts; 2 x 13 mm mounting screws; 2 x 19 mm mounting screws; 1 plastic protector; 1 set of PCOCC Lead Wires(AT6101)
Body Material: Aluminium/Synthetic Resin
Stylus Curvature: RadiusMicro linear
Terminal: PinsBrass
TypeDual: Moving Coil
Weight: 6.9g
