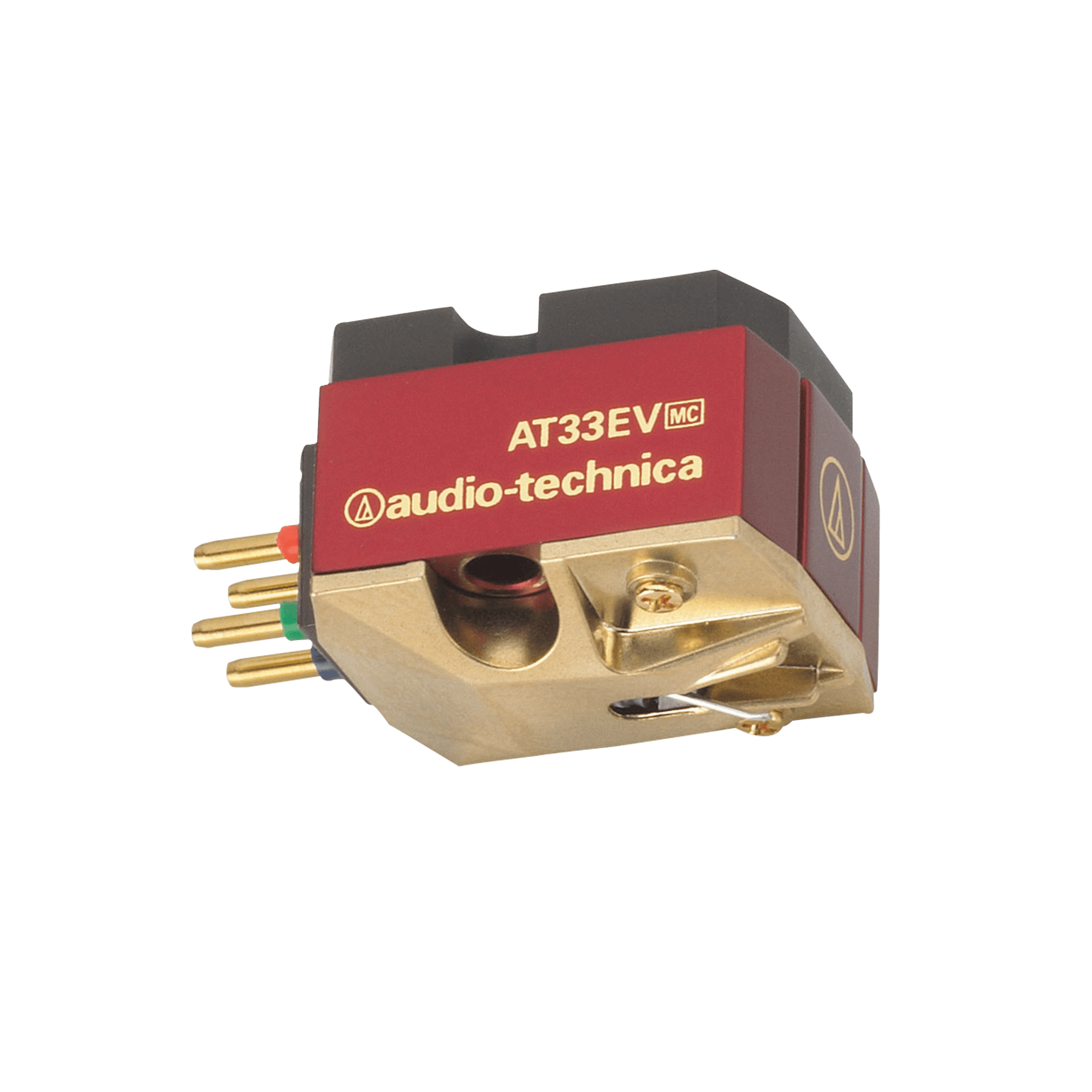

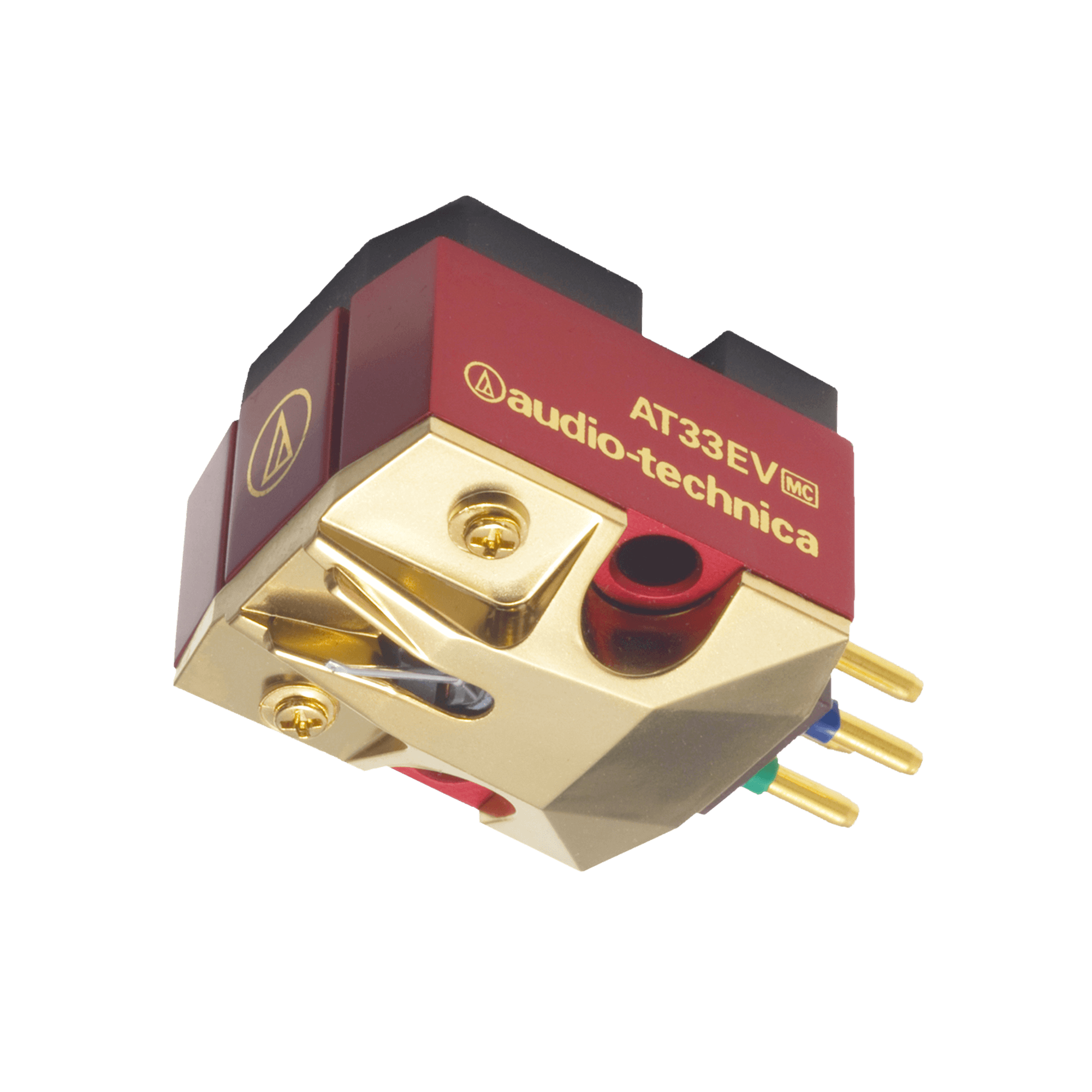

AUDIO-TECHNICA AT33EV
AUDIO-TECHNICA AT33EV - Elpisveida adatas kasetne. Dual Moving Coil kasetnes dizainas uzlabo vinila plates skanējumu un paplašina frekvenču diapozonu no 15 līdz 50 000 Hz. AT33EV kastetnei ir konusveida duraluminija konsole. Dual Moving Coil kasetnes dizains palielina kanālu atdalīšanu un paplašina frekvences reakcijas diapazonu, nodrošinot izcilu audio kvalitāti.
Frequency Response: 15 - 50,000Hz
Channel Separation: 30dB (1kHz)
Vertical Tracking Angle: 23°
Vertical Tracking Force: 1.8 to 2.2 g (standard 2.0 g)
Stylus Construction: Nude Square Shank
Recommended Load Impedance: More than 100Ω (when head amp connected)
Coil Impedance: 10Ω (1kHz)
DC Resistance: 10Ω
Coil Inductance: 22µH (1kHz)
Output Voltage: 0.3mV (1kHz and 3.54cm/sec.)
Output Channel Balance: 0.5dB (1kHz)
Stylus Shape: Elliptical
Cantilever: Duralumin
Static Compliance: 40×10-6cm/dyne
Dynamic Compliance: 10×10-6cm/dyne (100Hz)
Mounting: 1/2" Centers
Dimensions: H16×W16.6×D26.5mm
Accessories Included: Non-magnetic screwdriver × 1, Washer × 2, Protector × 1, Cartridge installation screws 13 mm × 2 and 19 mm × 2, Nut × 2, Brush × 1, PCOCC lead set × 1
Body Material: Aluminium/Synthetic Resin
Stylus Curvature Radius: 0.3 x 0.7 mil
Terminal Pins: Brass
Type: Dual Moving Coil
Weight: 6.9g
