AUDIO-TECHNICA AT-ART9XA

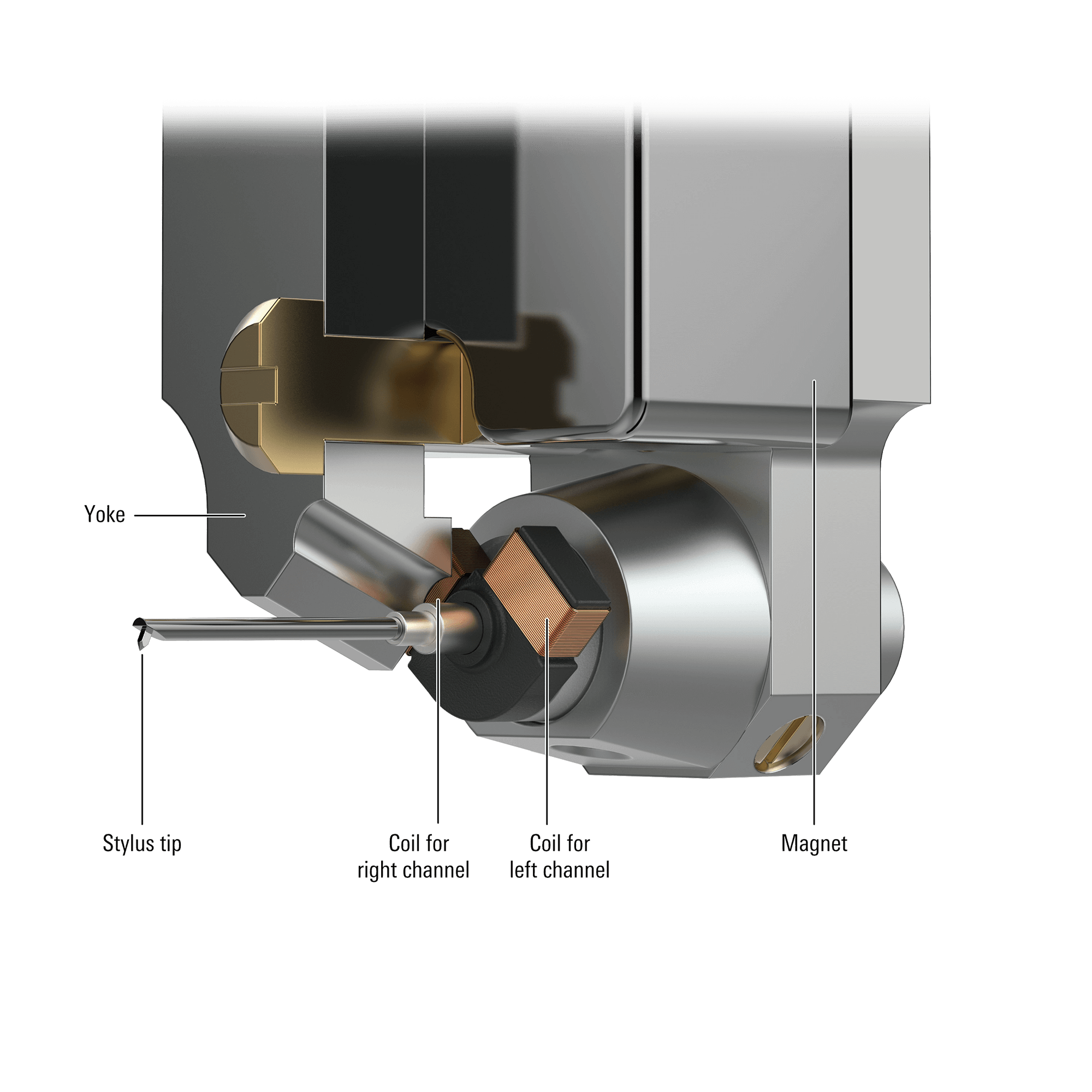

AUDIO-TECHNICA AT-ART9XA ir Shibata tipa adatas MC kasetne. Shibata tipa adatas nodrošina precīzu vidējā un augstā frekvenču joslas reproducēšanu. Mehāniski apstrādāta alumīnija pamatne atbalsta gan magnētisko ķēdi, gan vibrācijas sistēmu, nodrošinot izcilu atskaņošanas stabilitāti Hibrīda korpuss no mehāniski apstrādāta alumīnija un augstas stingrības plastmasas samazina nevēlamo parazītisko rezonansi Vītņotie kasetnes montāžas caurumi ļauj viegli uzstādīt uz galvas apvalka vai integrētā tone-arm.
requency Response20-50,000 Hz
Channel Separation30 (dB at 1 kHz)
Vertical Tracking Angle20°
Vertical Tracking Force1.6-2.0 g (1.8 g standard)
Stylus ConstructionNude
Recommended Load ImpedanceMin. 100 ohms (when head amplifier connected)
Coil Impedance12 ohms (1 kHz)
DC Resistance12 ohms
Coil Inductance2.5 µH (1 kHz)
Output Voltage0.2 mV (1 kHz, 5 cm/sec.)
Output Channel Balance0.5 dB (1 kHz)
Stylus ShapeShibata
Cantilever0.28 mm diameter solid boron
Static Compliance20 x 10-6 cm/dyne
Dynamic Compliance10 x 10-6 cm/dyne (100 Hz)
MountingHalf-inch
Cartridge Weight8.5 g (0.30 oz)
Dimensions17.3 mm (0.68") H × 16.8 mm (0.66") W × 25.0 mm (0.98") D

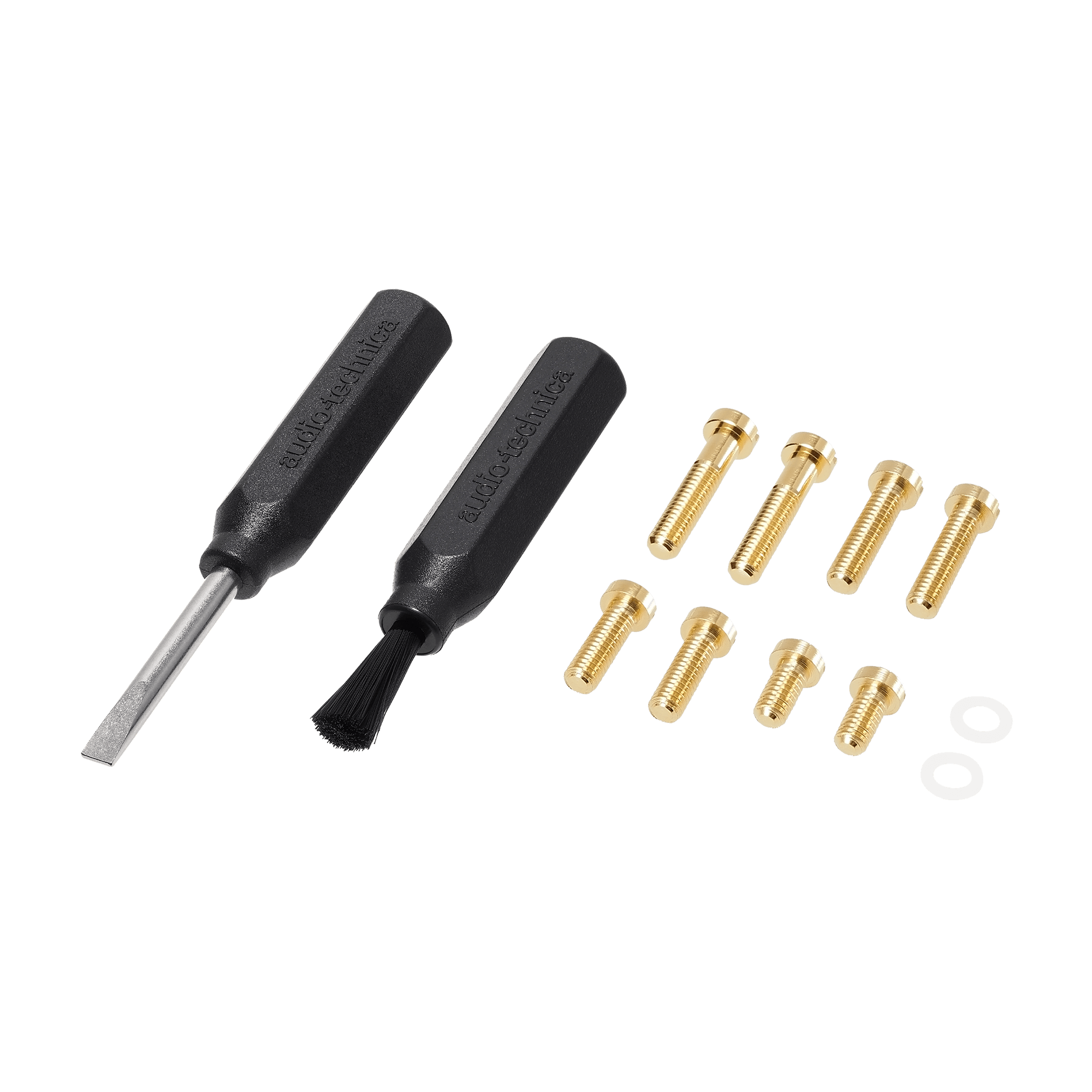

Accessories IncludedNon-magnetic screwdriver; 2 washers; cartridge installation screws (M2.6) (5.0 mm × 2, 8.0 mm × 2, 10.0 mm x 2, 12.0 mm x 2); protector; brush
Threaded HoleM2.6 x 2
Notes: moving coil cartridges require receivers or preamps with compatible inputs; their stylus assemblies are not field-replaceable.
